Diagnosis of Faults

Appearance of the glow plug:

Breakage of the glow plug bulb by thermal shock.

Problems:

Burning the glow plug;

Fault lamp lit on panel;

Cold start difficulty;

White smoke on cold start;

black smoke in the engine.

Causes:

1. 1. Lack of tightness of the injectors;
2. 2. engine oil burn;
3. 3. Oil leakage from the turbine;
4. 4. Water infiltration into the combustion chamber;
5. 5. Condensation of water in fuel.

Solutions:

For Cause 1, check the tightness of the injectors, correcting if necessary;

Para a causa 2 e 3, check the condition of the engine and turbocharger;

Para a causa 4 e 5, check fuel condition and moisture separator filter;

for all causes, replace the glow plug as per NGK application table.

Share with

Appearance of the glow plug:

Clearance between glow plug body and bulb.

Trouble:

Early burning of the glow plug.

Cause:

Excessive tightening torque on the glow plug.

Solution:

When installing the glow plug, apply the specified tightening torque.

Check that there has been no damage to the head seat, repairing if necessary.

Replace glow plug according to NGK application table.

Share with

Appearance of the glow plug:

Deformation of the glow plug bulb during installation.

Problems:

Glow plug does not sit on head;

Exhaust gases.

Cause:

Residue (soot and carbon) in the glow plug housing.

Solution:

Clean the glow plug housing in the head.

Replace glow plug according to NGK application table.

Share with

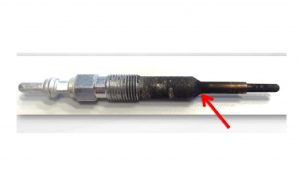

Appearance of the glow plug:

Gas exhaust marks by glow plug;

color change;

Glow Plug Overheating.

Problems:

Gas exhaust by the glow plug;

Overheating damage;

loss of performance;

Damage to vehicle harness;

Fault lamp lit on panel;

Cold start difficulty;

White smoke on cold start.

Causes:

1. 1. Lack of tightening torque at installation;
2. 2. Residue on the glow plug seat;
3. 3. Deformed head housing seat;
4. 4. Incorrect glow plug application.

Solutions:

For Cause 1, apply the correct tightening torque;

For Cause 2, remove debris before installing the glow plug;

For Cause 3, check and correct the glow plug seat in the head;

For Cause 4, apply the correct glow plug;

for all causes, replace the glow plug as per NGK application table.

Share with

Appearance of the glow plug:

Presence of residue in the form of a ring near the region where the glow plug settles.

Problems:

Difficulty installing the glow plug;

Lack of glow plug sealing;

Gas exhaust by the glow plug.

Causes:

1. 1. Engine oil seepage into the combustion chamber;
2. 2. Oil leakage from the turbine;
3. 3. Incorrect application.

Solution:

Para as causas 1 e 2, check the condition of the engine and turbocharger, repairing if necessary.

For Cause 3, clean and check the glow plug housing and seat, repairing if necessary.

for all causes, replace the glow plug as per NGK application table.

Share with

Appearance of the glow plug:

Thread breakage in the fastening region or in the harness connector.

Problems:

Difficulty in fixing the harness;

Thread breakage in the terminal region;

Difficulty in removing the glow plug.

Cause:

Application of excessive tightening torque.

Solution:

Applying the correct tightening torque.

Replace glow plug according to NGK application table.

Share with

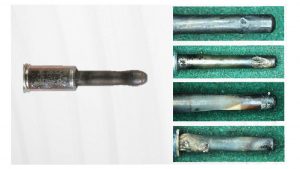

Appearance of the glow plug:

Damage and deformation of glow plug bulb.

Problems:

Burning the glow plug;

Fault lamp lit on panel;

Cold start difficulty;

White smoke on cold start.

Causas:

1. 1. Glow plug overheating due to excess voltage;
2. 2. Faulty cold start control system;
3. 3. Incorrect application.

Solutions:

For Cause 1, check the supply voltage of the glow plugs;

For Cause 2, check the cold start control system;

For Cause 3, apply the correct glow plug for the engine.

for all causes, replace the glow plug as per NGK application table.
